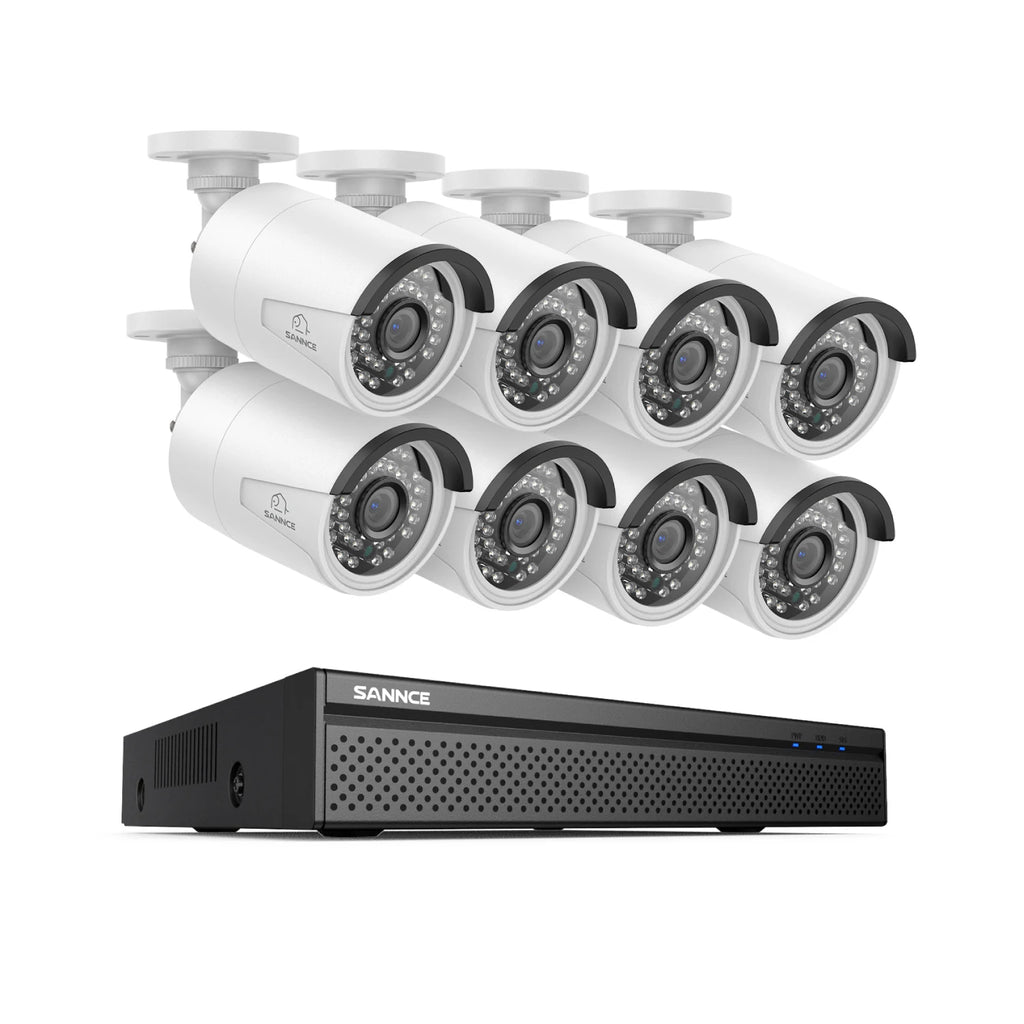

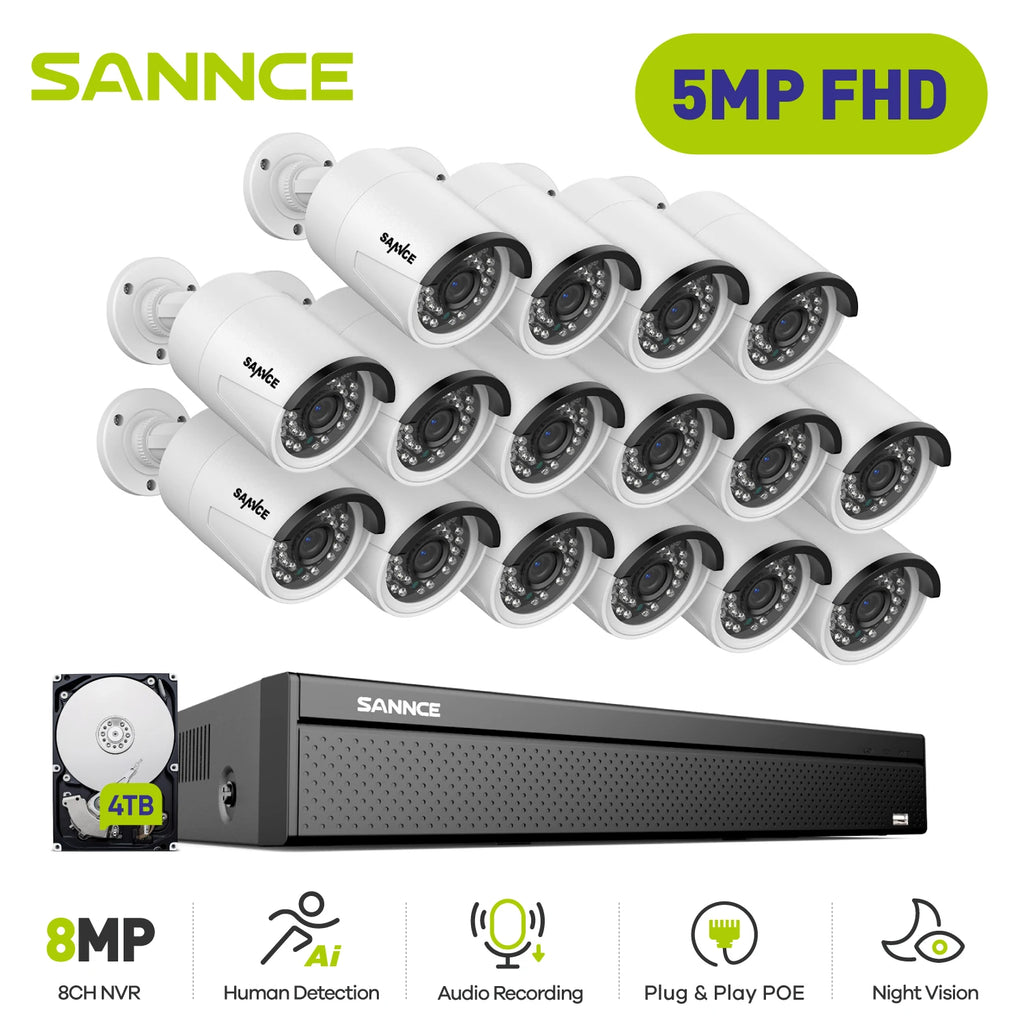

SANNCE 16CH 5MP HD POE Network Video Security System H.265+ NVR 30M EXIR Night Vision IP Camera CCTV Security Protection 2.8MM
SANNCE 16CH 5MP HD POE Network Video Security System H.265+ NVR 30M EXIR Night Vision IP Camera CCTV Security Protection 2.8MM
SPECIFICATIONS
Brand Name: SANNCE
Cable Length: 30m,18m
Certification: CE
High-concerned chemical: none
Model Number: N98PBD+I91FQ*8
Origin: Mainland China
PCS of Camera: 8PCS
Resolution: 8MP
Smart home platform: NONE
TV System: NTSC,PAL
Video Input: 8 Channel

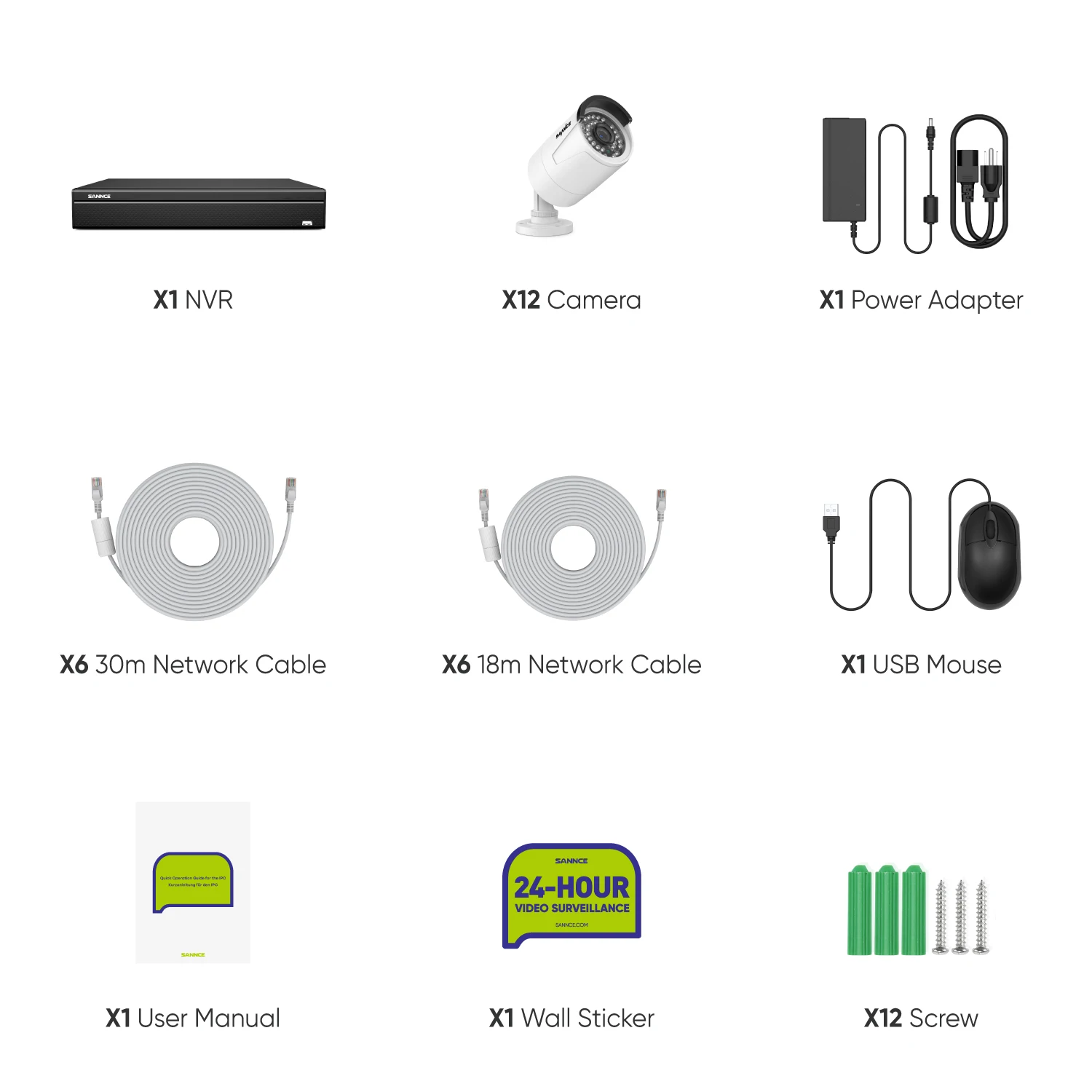

16CH NVR +16PCS Camera
16CH NVR +12PCS Camera
16CH NVR +8PCS Camera
8CH NVR +4PCS Camera
8CH NVR |
||
1 Year |
||
Video & Audio |
Video Compression |
H.265+ |
IP Video Input |
8CH POE+2CH |
|

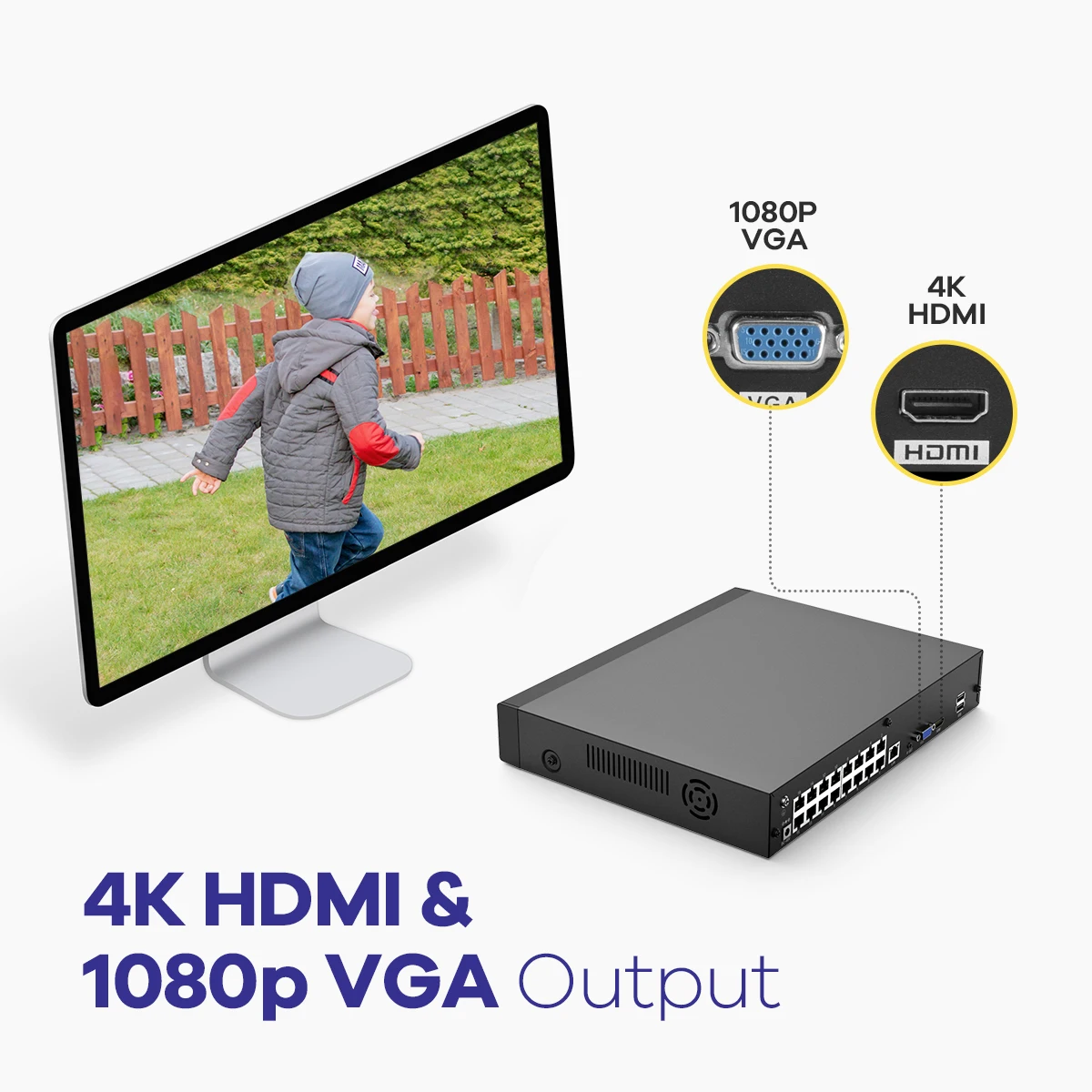

Video Output |
HDMI Up to 4K |
|
Audio Output |
Support |
|
Max Recording Resolution |
Up to 8M(3860x2160) |
|
Max Playback Resolution |
Up to 8M(3860x2160) |
|
Max Playback Channel |
4CH |
|
Max Playback Capacity |
4CH 3MP/2CH 5MP/1CH 8MP |
|
Onvif |
Support |
|
Hard Drive |
HDD |
1 SATA interface |
HDD Capacity |
Up to 12TB capacity |
|
External Interface |
Network interface |
RJ45x1(10/100/1000M) |
PoE |
8 Ports(100Mbps, IEEE802.3at/af) |
|
USB |
USB2.0x2 |
|
General |
Housing |
Metal for main part |
Operating Power |
DC48V 2A |
|
Power Consumption |
10W(without HDD) |
|
PoE: Max 30W for single port | ||
Working Temperature |
32 °F – 131 °F /0 °C – 55 °C |
|
Dimensions(W x H x D) |
260x245x47mm |
|
Weight (without hard disk) |
820g(without HDD) |
|
16CH NVR |
||
Warranty |
1 Year |
|
Video & Audio |
Video Compression |
H.265+ |
IP Video Input |
16CH POE |
|
Video Output |
HDMI Up to 4K |
|
Audio Output |
Support |
|
Max Recording Resolution |
Up to 8M(3860x2160) |
|
Max Playback Resolution |
Up to 8M(3860x2160) |
|
Max Playback Channel |
4CH |
|
Max Playback Capacity |
4CH 3MP/2CH 5MP/1CH 8MP |
|
Onvif |
Support |
|
Hard Drive |
HDD |
1 SATA interface |
HDD Capacity |
Up to 12TB capacity |
|
External Interface |
Network interface |
RJ45x1(10/100/1000M) |
PoE |
16 Ports(100Mbps, IEEE802.3at/af) |
|
USB |
USB2.0x2 |
|
General |
Housing |
Metal for main part |
Operating Power |
DC48V 3.75A |
|
Power Consumption |
10W(without HDD) |
|
PoE: Max 30W for single port | ||
Working Temperature |
32 °F – 131 °F /0 °C – 55 °C |
|
Dimensions(W x H x D) |
325x265x53mm |
|
Weight (without hard disk) |
1290g(without HDD) |
|
8MP IP Camera |
||
Warranty |
1 Year |
|
Camera |
Video Resolution |
8MP(3840×2160) |
Image Sensor |
1/2.8" Progressive Scan CMOS |
|
Video Compression |
H.264+ |
|
Video Bitrate |
32Kbps~2Mbps |
|
Audio Compression |
G711 |
|
Lens |
2.8mm |
|
Angle of View |
105° |
|
Number of Infrared LEDs |
36 |
|
Night Vision Distance |
Up to 20m |
|
Onvif |
support |
|
IR-Cut Filter |
Yes |
|
Ethernet |
RJ45 |
|
General |
Housing |
Metal |
Operating Power |
PoE (802.3af)/DC12V |
|
Operating Temperature |
-4 °F – 140 °F /-20 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Mount Option |
Wall mount/Ceiling mount |
|

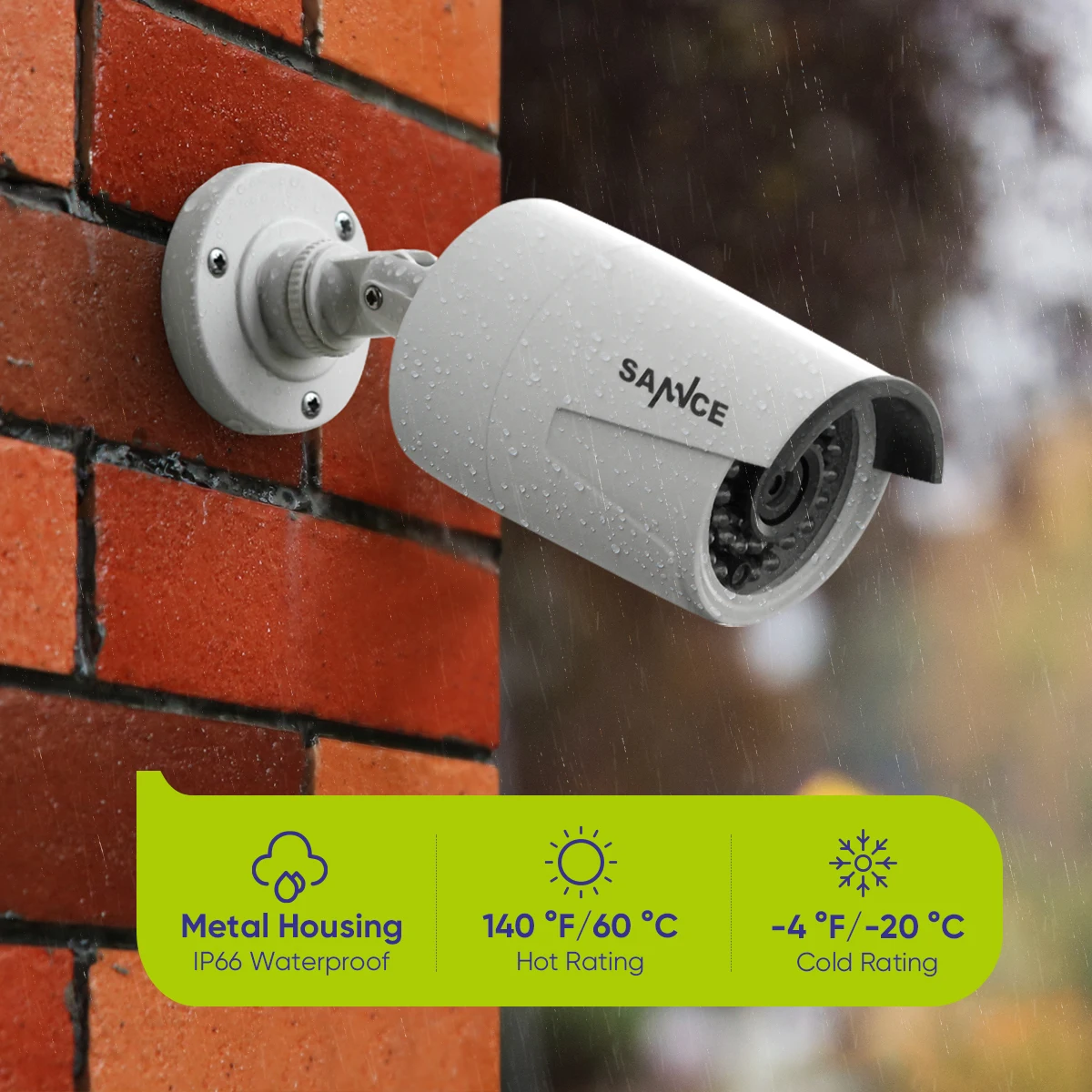

Weatherproof Rating |
IP66 |
|
Dimension (L × W × H) |
170 x 65 x 65mm |
|
Weight |
350g |
|

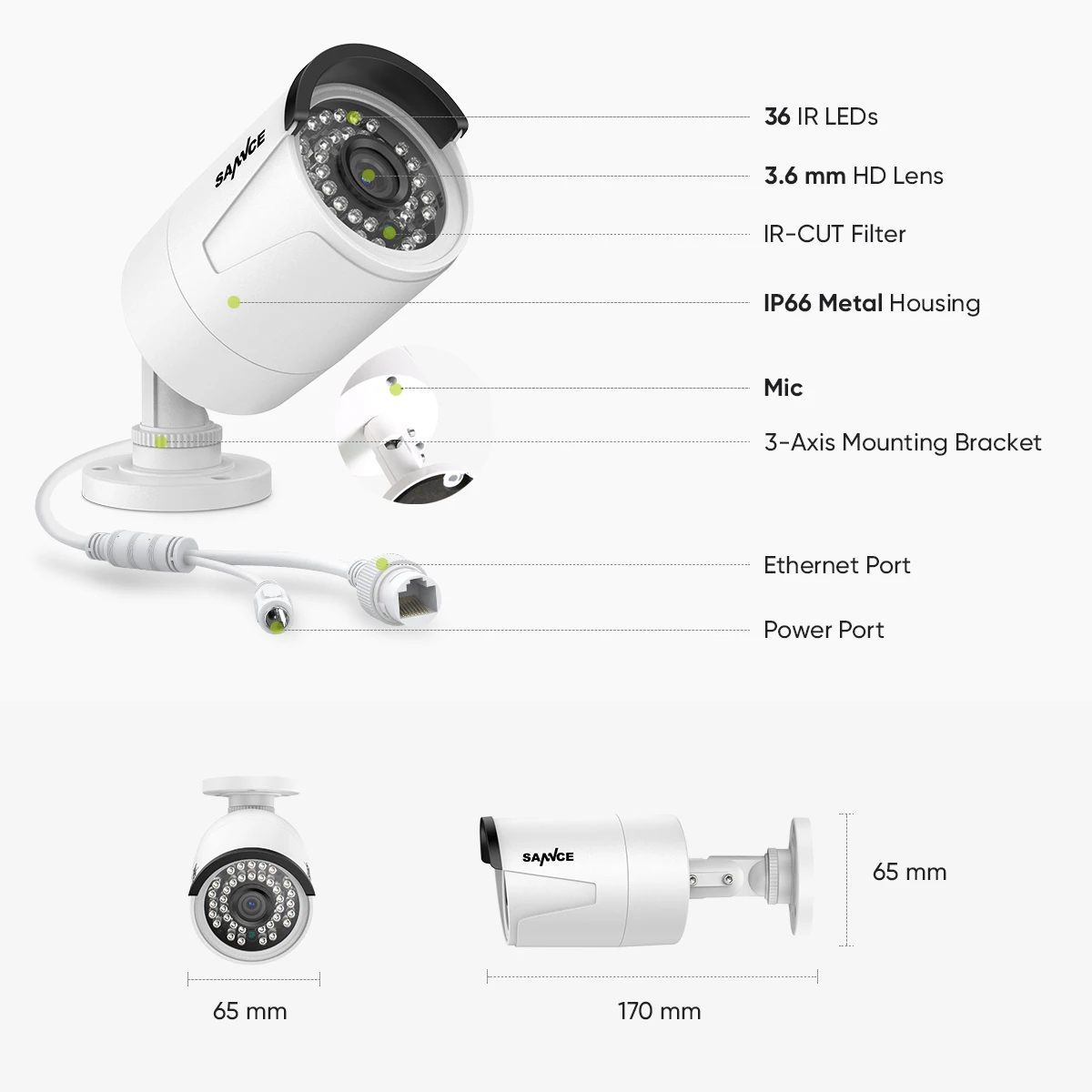

5MP IP Camera: | ||
Camera |
Video Resolution |
5MP(2880x1616) |
Image sensor |
1/2.8" Progressive Scan CMOS |
|
Video compression |
H.265+ |
|
Audio Compression |
G.711A |
|
Lens |
3.6mm |
|
Angle of View |
70° |
|
Number of Infra-Red LEDs |
36 |
|
Night Vision Distance |
Up to 100ft/30m |
|
Wide Dynamic Range |
Digital WDR |
|
IR Cut Filter |
YES |
|
Ethernet |
RJ45x1(10M/100M) |
|
General |
Housing |
Metal |
Operating Power |
DC12V;PoE (802.3af) |
|
Operating Temperature |
-4 °F – 140 °F /-20 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP66 |
|
Dimension (L x W x H) |
6.7” x 2.6” x 2.6” / 170 x 65 x 65mm |
|
Weight |
0.772lbs / 350g |
|
