ANNKE 12MP Video Surveillance Kit 8CH NVR Smart Dual Light POE Camera Night Vision Audio CCTV Security Protection Camera System
ANNKE 12MP Video Surveillance Kit 8CH NVR Smart Dual Light POE Camera Night Vision Audio CCTV Security Protection Camera System
SPECIFICATIONS
Audio input/output: Bulit-in Microphone
Brand Name: ANNKE
Cable Length: 20m,18m
Certification: CE,FCC
Color: White & Black
Feature 1: POE Video Surveillance Set
Feature 10: Security Camera System
Feature 11: camera surveillance
Feature 12: CCTV Camera System
Feature 2: CCTV POE Kit
Feature 3: poe nvr system
Feature 4: ip camera system
Feature 5: nvr system
Feature 6: nvr poe
Feature 7: CCTV camera 12MP
Feature 8: CCTV Video Surveillance
Feature 9: CCTV Surveillance System
High-concerned chemical: none
Housing: Metal & Plastic
IP Video Input: 8CH POE
Image sensor: 1/2.7" Progressive Scan CMOS
Indoor/Outdoor: Indoor/Outdoor
Lens: 2.8 mm
Max Playback Channel: 8CH
Model Number: N48PAW-91DN
Origin: Mainland China
PCS of Camera: 4PCS
Resolution: 8MP
Supplement Light Range: YES
TV System: NTSC,PAL
Video Compression: H.264+/H.264/H.265/H.265+/MPE
Video Input: 8 Channel
Video Output: HDMI up to 4K; VGA up to 1080p
★ 12MP smart dual light dome network camera
★ 2.8mm lens brings everything back to life
★ Efficient H.265+ compression technology
★ Motion detection 2.0 with human & Vehicle Detection
★ Clear day and night vision with 3D DNR and 120DB WDR
★ Built-in microphone for real-time audio security
★ Support on-board storage up to 512 GB (SD card slot)
★ IP67 Dust and Waterproof Rating
★ Support PoE &DC12V
12MP Visual Experience: More Detailed Images
Cutting-edge 12MP security camera, delivering unrivaled clarity with a staggering 4096 x 3072 resolution. See every detail in vivid precision, ensuring nothing escapes your watchful eye. The 2.8mm@F1.6 lens guarantees impeccable low-light performance, capturing crisp, well-defined images even in challenging conditions.
Optimize Your Security with Flexible Lighting Option
You can select the lighting mode that best suits your requirements: 24/7 color, IR or smart dual-light. In smart dual-light mode, the camera maintains infrared illumination until an event triggers color imaging to capture critical details. White light and infrared fill light is up to 30 m distance for bright night imaging.
Elevate Security Precision: Deep Learning Algorithms
With Motion Detection 2.0, rest assured that you'll only receive alerts for relevant activity – eliminating 99% of unwanted notifications caused by animals, weather elements, or non-essential objects. Our system intelligently focuses on human and vehicle shapes by default, drastically reducing false alarms.
Cutting-edge Technology to Ensure Image Clarity
With a remarkable 120dB WDR, it ensures exceptional performance in high-contrast lighting conditions. The BLC, 3D DNR, and HLC collectively guarantee crystal-clear visuals, eliminating overexposed or underexposed areas. Say goodbye to image noise and hello to pristine, detailed footage.

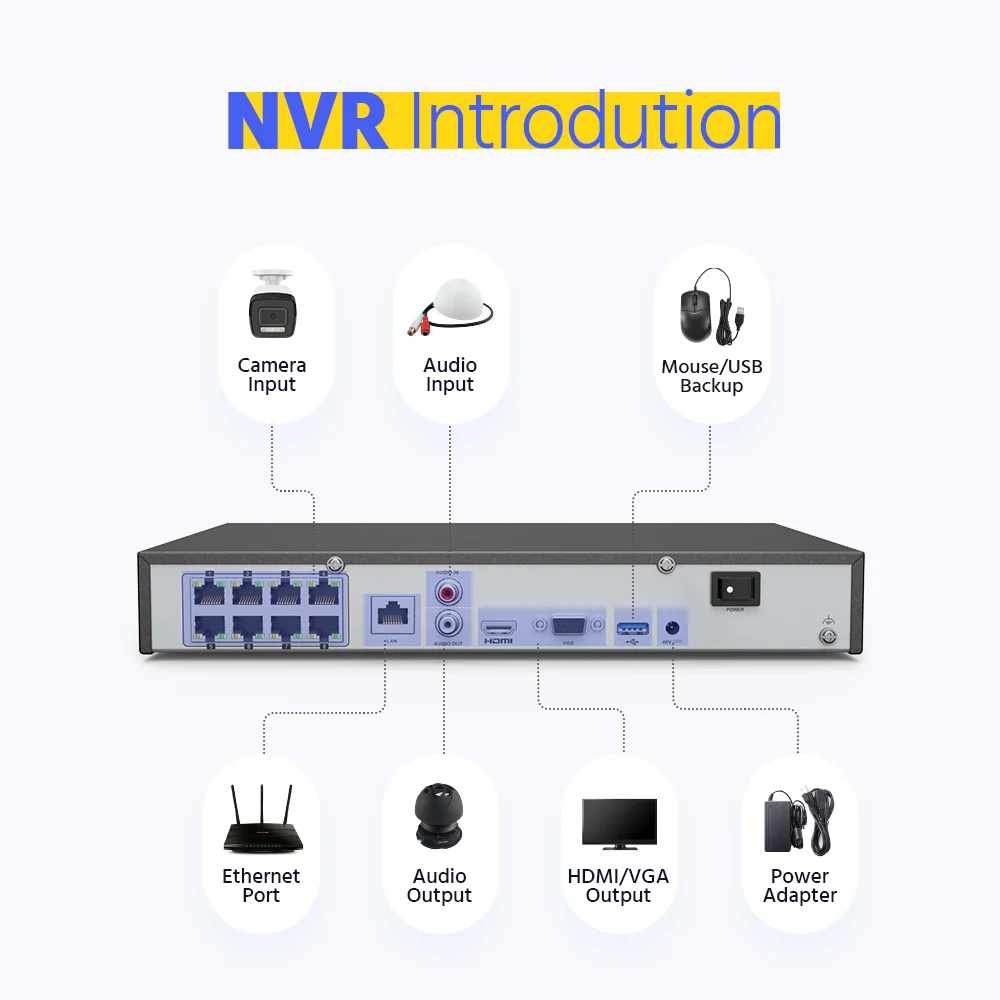

NVR:
Video & Audio |
Decoding Format |
H.264+/H.264/H.265/H.265+ |
IP Video Input |
8CH PoE |
|
Video Output |
HDMI up to 4K (4096 × 2160), VGA up to 1080p(1920 × 1080) |
|
Audio Input/Output |
1/1 RCA |
|
Incoming/outgoing Bandwidth |
80/80 Mbps |
|
Max Recording Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
|
Max Playback Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
|
Max Playback Channel |
8CH |
|
Max Playback Capacity |
1-ch@12 MP(4096 X 3072) (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) |
|
Hard Drive |
HDD |
1 SATA Interface |
HDD Capacity |
Up to 8 TB Capacity |
|
External Interface |
Network Interface |
1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
PoE |
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at |
|
USB interface |
USB 2.0*2 |
|
Smart Function |
Deep learning |
8-ch Human and vehicle targets detection(Need IP camera support) |
4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP) |
||
Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting |
|
General |
Operating Power |
DC 48 V |
Power Consumption |
≤10 W (Without HDD and PoE) |
|
PoE: Max 25.5 W for Single Port |
||
Working Temperature |
14 °F ~ 131 °F/-10 °C ~+55 °C |
|
Dimensions (W X H X D) |
12.4” X 9.4” X 1.9”/315 X 240 X 48 mm |
|
Weight (Without Hard Disk) |
2.2 lbs/1 kg |
Camera:
Camera |
Image Sensor |
1/2.7" Progressive Scan CMOS |
Max resolution |
4096*3072(12MP) |
|
Main Stream |
50 Hz: 10 fps@4096*3072, 12.5 fps@(3840*2160, 3200*1800, 2688*1520, 1920*1080, 1280*720) |
|
Substream |
50 Hz: 12.5 fps (1280*720, 640*480, 640*360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bitrate |
32 Kbps - 16 Mbps |
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
|
Audio Input |
Built-in Microphone, record with audio |
|
Lens |
2.8 mm |
|
Min. Illumination |
Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
|
Angle of View |
Horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134° |
|
Supplement Light Type |
Smart Dual-Light, IR, White Light |
|
Supplement Light Range |
Up to 30 m |
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120 dB WDR |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
|
API |
Open Network Video Interface Version 19.12 (Profile S, Profile T, Profile G) |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Rotate mode, mirror, password protection, remote access |
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
General |
Housing |
Metal & Plastic |
Color |
White |
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 512 GB |
|
Hardware Reset |
Yes |
|
Operating Power |
DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
Interface Protection |
IP67 & IK08 |
|
Dimension (L X W X H) |
Ø 121.5 mm × 97.6 mm (Ø 4.78" × 3.84") |
|
Weight |
Approx. 550 g (1.2 lb.) |
